Product information

Metal arm seriesSYC-05MF-3D2

○○○○○○○○イメージ

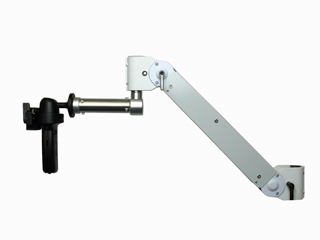

A ball head is attached to the tip of the arm, so you can easily attach a video camera or digital camera.
With a simple arm and head operation, you can easily set the camera position according to the direction and angle of the object you want to shoot.



 Product model number  SYC-05MF-3D2
 Attachable object  microscope, measuring instrument, video camera, digital camera
 Maximum weight of attachable object  3.0 kg
 The tip of the arm  Ball head (Manfrotto 324RC2 or Slick AF2100)
 Total arm length  70cm (excluding ball head)
 Arm vertical movement angle  Upper 40 degrees + lower 50 degrees
 Actuation lock lever  Up and down operation lock,
 Left and right rotation operation lock
 Body weight  4.2kg
 Delivery time  2 weeks-
