PC arm seriesSYC-04SH-2.5S2

○○○○○○○○イメージ

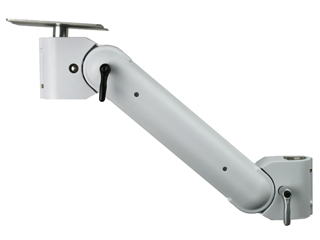

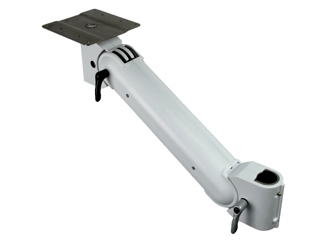

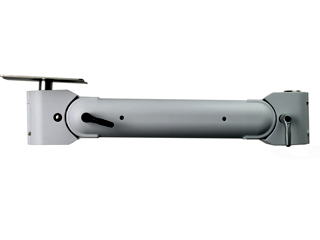

Arm base type for mounting a personal computer etc. based on the multi-joint arm function.
The free stop mechanism allows the arm to move freely up and down, and the upper stop lever allows the arm to be set and stopped at any position.
Also in the left / right rotation direction, the PC can be set to a desired position by turning the lower stop lever.



 Product model number  SYC-04SH-2.5S2
 Attachable object  PC, table, measuring equipment
 Maximum weight of attachable object  3.0 kg

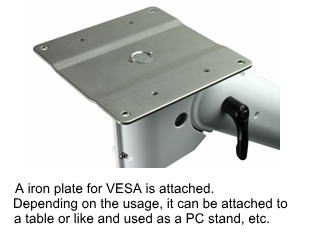

 The tip of the arm  VESA mount (100mm×100mm size)
 Total arm length  38cm
 Arm vertical movement angle  Upper 40 degrees + lower 30 degrees
 Actuation lock lever Up and down operation lock,
Left and right rotation operation lock
 Body weight  2.4kg
 Delivery time  2 weeks-
