Product information

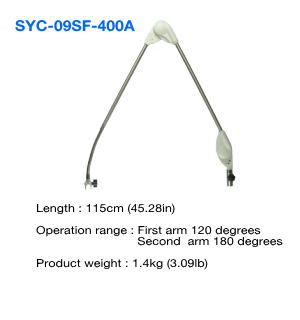

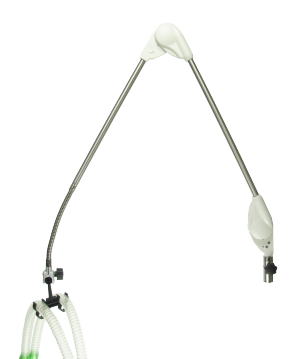

Support arm seriesSYC-09SF-400A
Support arm with free-stop mechanism.More small editions have been developed as the 3rd version of a support arm series.
The arm diameter is as thin as 1.4cm, and the arm is easy to handle due to its light movement.
The arm can be attached to various devices, and it can also be installed in a narrow space, making it easy to store.
Drawings of the appearance
Arm vertical movement angle: 1st arm 120 degrees, 2nd arm 180 degrees
 |
 |
 |
 |
| Product model number | SYC-09SF-400A | |

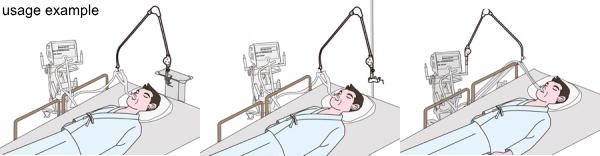

| Attachable object | Ventilator hose, Compact camera, Ball head, Smartphone holder |
|
| Maximum weight of attachable object | 0.4kg (0.88lb) | |
| The tip of the arm | Adapt to the mount | |
| Arm length | 115cm (45.28in) | |
| Arm vertical movement angle | 1st arm 120 degrees, 2nd arm 180 degrees | |
| Arm weight | 1.4kg (3.09lb) | |
| Delivery time | 3 weeks- | |
 |
 |
 |
 |
 |
|
