Product information

Support arm seriesSYC-06LF-1D2

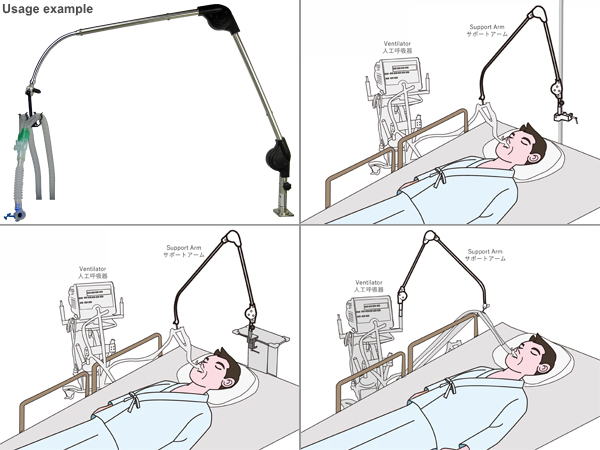

○○○○○○○○イメージVentilator Support Arm
(Free-Stop Arm)

This support arm developed by original technology.
The arm diameter is as thin as 2cm, and the arm is easy to handle due to its light movement.
Arms can be mounted on various devices, and can be mounted in narrow spaces, making them easy to store.


Arm vertical movement angle: 1st arm 90 degrees, 2nd arm 170 degrees






 Product model number  SYC-06LF-1D2
 Attachable object   Small camera, cable, hose, etc.
 Maximum weight of attachable object  0.7 kg
 The tip of the arm  Adapt to the mount
 Arm total length  120cm
 Arm vertical movement angle  1st arm 90 degrees, 2nd arm 170 degrees
 Body weight  3.8kg
 Delivery time  3 weeks-
