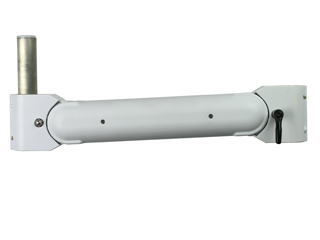

Angle fixed arm for extension SeriesSYC-AX-SS
As an option of the model number SYC-05MF-3D2 of the metal arm series and
each arm of the PC arm series, it is a angle fixed arm for extension.

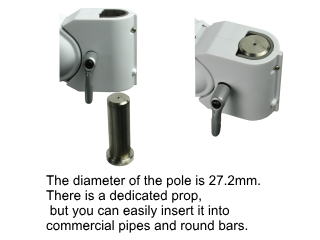

A 27.2mm round bar is attached to the tip so that it can be easily attached and detached.
| Product model number | SYC-AX-SS | |
| The tip of the arm | Round bar for connection, length 8cm | |
| Total arm length | 38cm | |
| Arm vertical movement angle | None | |
| Actuation lock lever | Left and right rotation operation lock | |
| Body weight | 2.0kg | |
| Delivery time | 2 weeks- | |
