Product information

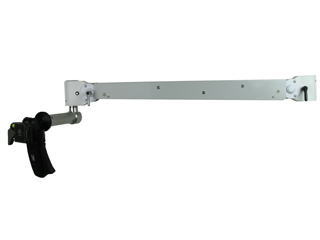

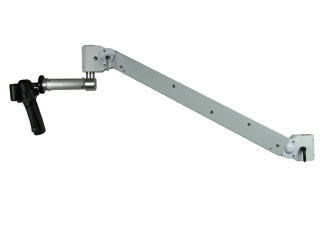

Metal arm seriesSYC-05LF-1.5D2
A ball head is attached to the tip of the arm, so you can easily attach a video camera or digital camera.
With a simple arm and head operation, you can easily set the camera position according to the direction and angle of the object you want to shoot.
It is a long type with rigidity and is used as a medical support camera arm for photography of small surgery and treatment.
| Product model number | SYC-05LF-1.5D2 | |
| Attachable object | Measuring instrument, video camera, digital camera | |
| Maximum weight of attachable object | 1.5 kg | |
| The tip of the arm | Ball head (Mancrot 322RC2 or Slick AF2100) | |
| Total arm length | 90cm (excluding the free pan head) | |
| Arm vertical movement angle | Upper 30 degrees + lower 25 degrees | |
| Actuation lock lever | Up and down operation lock, Left and right rotation operation lock |
|
| Body weight | 5.3kg | |
| Delivery time | 2 weeks- | |
