Product information

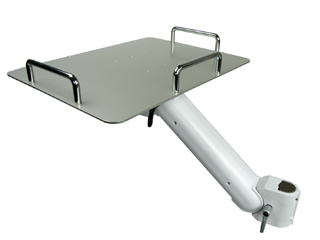

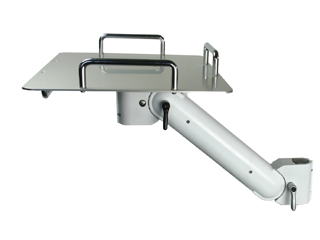

PC arm seriesSYC-04SH-3S2
Arm base type for mounting a personal computer etc. based on the multi-joint
arm function.
The free stop mechanism allows the arm to move freely up and down, and the upper stop lever allows the arm to be set and stopped at any position.
Also in the left / right rotation direction, the PC can be set to a desired position by turning the lower stop lever.
| Product model number | SYC-04SH-3S2 | |
| Attachable object | PC, measuring equipment | |
| Maximum weight of attachable object | 2.0 kg | |

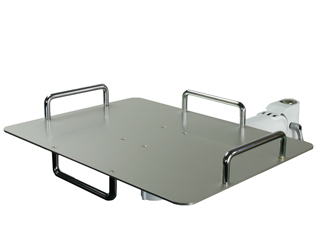

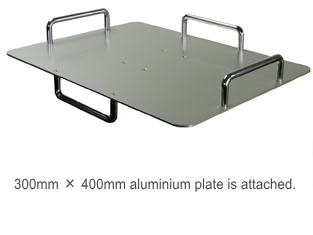

| The tip of the arm | VESA mount PC table (30cm x 40cm table + handle 4 directions) included | |
| Arm length | 38cm | |
| Arm vertical movement angle | 40 degrees on the upper side | |
| Actuation lock lever | Up and down operation lock, Left and right rotation operation lock |
|
| Arm weight | 3.8kg | |
| Delivery time | 2 weeks- | |
