Product information

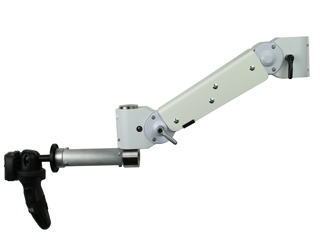

Metal arm seriesSYC-05SF-3D2
A ball head is attached to the tip of the arm, so you can easily attach a video camera or digital camera.
With a simple arm and head operation, you can easily set the camera position according to the direction and angle of the object you want to shoot.
Equipped with a three-point lock mechanism and locks all arm movements after setting the position, so there is no shaking, making it suitable for accurate measurement and shooting.
This product can be used as a support arm for medical measurement equipment.
| Product model number | SYC-05SF-3D2 | |
| Attachable object | Microscope, measuring instrument, video camera, digital camera | |
| Maximum weight of attachable object | 3.0 kg | |
| The tip of the arm | Ball head (Manfrotto 324RC2 or Slick AF2100) | |
| Total arm length | 55cm (excluding ball head) | |
| Arm vertical movement angle | Upper 40 degrees + lower 30 degrees | |
| Actuation lock lever | Up and down operation lock, Left and right rotation operation lock, Second joint left and right rotation operation lock |
|
| Body weight | 3.6kg | |
| Delivery time | 2 weeks | |
