Product information

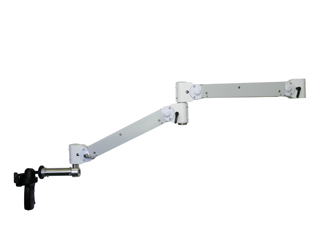

Metal arm seriesSYC-05MF-1.5T2
As it is a double arm, it enables a wider range of movement.

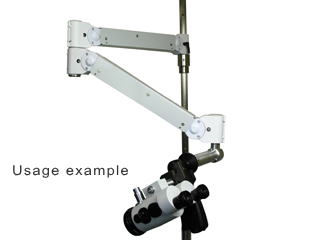

A ball head is attached to the tip of the arm, so you can easily attach a video camera or digital camera.
With a simple arm and head operation, you can easily set the camera position according to the direction and angle of the object you want to shoot
| Product model number | SYC-05MF-1.5T2 | |
| Attachable object | Microscope, measuring instrument, video camera, digital camera | |
| Maximum weight of attachable object | 1.5 kg | |
| The tip of the arm | Ball head (Manfrotto 322RC2 or Slick AF2100) | |
| Total arm length | 120cm (excluding ball head) | |
| Arm vertical movement angle | First joint fixed Second joint upper 40 degrees + lower 50 degrees |
|
| Actuation lock lever | Up and down operation lock, Left and right rotation operation lock |
|
| Body weight | 7.3kg | |
| Delivery time | 2 weeks- | |
